Diamond Fret Crowning FileDiamond Fret Crowning File

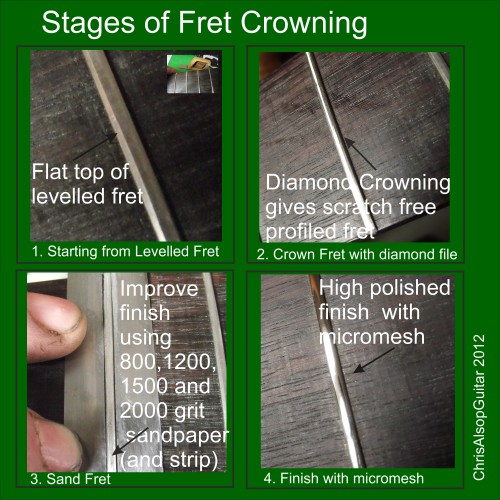

Frets need to be rounded to remove the flat tops after levelling, or when you dress frets to remove wear grooves. A rounded fret top is best achieved by using a rounded file !
This is a diamond fret crowning file. A diamond file with a concave profile is mounted in shaped handle made of engineering plastic. These files last for many fretboards and are equally long lasting on stainless frets and normal nickel silver frets.
The diamond file itself is 2.5mm wide by about 35mm long and is concave to match the fret profile - when in use the file stays on the fret very well, there's no chatter.
When in use, the file stays on the fret very well and there's no chatter. Being a diamond file it cuts equally well when moving forwards or backwards.
We have used a very low friction engineering plastic (so if you do slip it will not scratch badly!), which is used in many of our other fretting tools. Diamond Files are really the best surfaces developed by mankind for abrasion - the resulting surface is by far the smoothest hand filed surface possible - hence less finishing and polishing
An excellent finish results and and a full polished fret is quickly obtained by using sandpaper of about 1000 grit, 1500 grit and then micromesh of 8000 grit or over. Its only a couple of rubs with each and if you use a spring steel strip to protect the fretboard then the sandpaper glides across the surface of the fret and strip easily.
This is a diamond fret crowning file. A diamond file with a concave profile is mounted in shaped handle made of engineering plastic. These files last for many fretboards and are equally long lasting on stainless frets and normal nickel silver frets.
The diamond file itself is 2.5mm wide by about 35mm long and is concave to match the fret profile - when in use the file stays on the fret very well, there's no chatter.
When in use, the file stays on the fret very well and there's no chatter. Being a diamond file it cuts equally well when moving forwards or backwards.
We have used a very low friction engineering plastic (so if you do slip it will not scratch badly!), which is used in many of our other fretting tools. Diamond Files are really the best surfaces developed by mankind for abrasion - the resulting surface is by far the smoothest hand filed surface possible - hence less finishing and polishing
An excellent finish results and and a full polished fret is quickly obtained by using sandpaper of about 1000 grit, 1500 grit and then micromesh of 8000 grit or over. Its only a couple of rubs with each and if you use a spring steel strip to protect the fretboard then the sandpaper glides across the surface of the fret and strip easily.
230
Guitar Tool: Fret Crowning 2010-01-01 Id:230 ChrisAlsopGuitar
Current Price: £30.28
Diamond File Fret Leveller with Oak HandleDiamond File Fret Leveller with Oak Handle
These have a diamond file with a permanently bonded oak handle. They are designed to be guided along the fretboard with the file cutting a level onto the tops, or crown, of the frets.
Fine Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
The default files are fine grit file, one 150mm long and one 75mm long.
Diamond files produce a very smooth finish on the frets - this property makes these files suitable for any type of fret shaping. Once the frets are level the flat tops on the frets need reshaping to regain the peaked crown. These files have all sharp edges ground off so can be guided along the fret to reshape the crown. As always, before using any type of abrasive tools on a guitar it is recommended suitable protection. Ideally use our ultra thin hardened steel protector strips (see our other items) to protect the fretboard and allow smooth motion of the file.
We have used Oak for this product as it is a strong and versatile wood used in hand tool handles for years. Beech is also nice for file handles and we make this item in Beech. The tool works equally well in almost any type of wood! Diamond Files are really the best surfaces developed by mankind for abrasion - the resulting surface is by far the smoothest hand filed surface possible - hence less finishing and polishing!
Fine Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
The default files are fine grit file, one 150mm long and one 75mm long.
Diamond files produce a very smooth finish on the frets - this property makes these files suitable for any type of fret shaping. Once the frets are level the flat tops on the frets need reshaping to regain the peaked crown. These files have all sharp edges ground off so can be guided along the fret to reshape the crown. As always, before using any type of abrasive tools on a guitar it is recommended suitable protection. Ideally use our ultra thin hardened steel protector strips (see our other items) to protect the fretboard and allow smooth motion of the file.
We have used Oak for this product as it is a strong and versatile wood used in hand tool handles for years. Beech is also nice for file handles and we make this item in Beech. The tool works equally well in almost any type of wood! Diamond Files are really the best surfaces developed by mankind for abrasion - the resulting surface is by far the smoothest hand filed surface possible - hence less finishing and polishing!
Guitar Tool: Fret Levellers 2010-01-01 Id:213 ChrisAlsopGuitar
Current Price: £41.79
Fretboard Protector StripFretboard Protector Strip
Also known as fingerboard protectors, these strips are made of spring steel. This means it will ALWAYS return to a flat shape. As the strips are only 0.1mm thick this allows maximum access to the frets.
Guitar Tool: Fretboard Protectors 2010-01-01 Id:190 ChrisAlsopGuitar
Current Price: £4.99
Fretboard Protector StripFretboard Protector Strip
Also known as fingerboard protectors, these strips are made of spring steel. This means it will ALWAYS return to a flat shape. As the strips are only 0.1mm thick this allows maximum access to the frets.
Guitar Tool: Fretboard Protectors 2010-01-01 Id:191 ChrisAlsopGuitar
Current Price: £4.99
Fretboard Protector StripFretboard Protector Strip
Also known as fingerboard protectors, these strips are made of spring steel. This means it will ALWAYS return to a flat shape. As the strips are only 0.1mm thick this allows maximum access to the frets.
Guitar Tool: Fretboard Protectors 2010-01-01 Id:192 ChrisAlsopGuitar
Current Price: £4.99
Spare Diamond File for Fret LevellerSpare Diamond File for Fret Leveller
Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
These files have all sharp edges ground off so can be guided along the fret to reshape the crown. As always, before using any type of abrasive tools on a guitar it is recommended suitable protection. Ideally use our ultra thin hardened steel protector strips (see our other items) to protect the fretboard and allow smooth motion of the file.
Diamond Files are really the best surfaces developed by mankind for abrasion - the resulting surface is by far the smoothest hand filed surface possible - hence less finishing and polishing!
These files have all sharp edges ground off so can be guided along the fret to reshape the crown. As always, before using any type of abrasive tools on a guitar it is recommended suitable protection. Ideally use our ultra thin hardened steel protector strips (see our other items) to protect the fretboard and allow smooth motion of the file.
Diamond Files are really the best surfaces developed by mankind for abrasion - the resulting surface is by far the smoothest hand filed surface possible - hence less finishing and polishing!
Guitar Tool: Fret Levellers 2010-01-01 Id:214 ChrisAlsopGuitar
Current Price: £14.54
Diamond Fret Dressing File with Beech HandleDiamond Fret Dressing File with Beech Handle
Fret Dressing File. Tapered diamond file with all edges ground. Beech handle which has Angle Raised To About 20 Degrees from Horizontal.
Fine Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
The design of this file makes it ideal for : 1. To dress the ends of the frets, which is to just slightly round off the corner between the rounded fret top and the angled bevel. The small profile and the carefully ground edges of this file means the file can get right into the corners where the fret bevelled end meets the fretboard side. 2. Remove some fret height when an individual fret is found to be too high. 3. As the file can be angled along the side of a fret , it can shape the rounded crown of a fret. (A curved Fret Crowning File is the most efficient method for crowning click here to see our curved Fret Crowning Files)
he file is a fine grit diamond file that has been: 1. Ground around all the edges so the abrasive diamond surface of the file only contacts the fret and nothing else. 2. Tapered from 8mm wide near the handle to 4mm near the end to give best access and visibility of the file contacting the fret. 3. The file handle is angled up at about 20 degrees which means your hand can clear the fretboard easily and not aobstruct your work. As this is a diamond file, it cuts equally well when moving forwards OR backwards which makes it very versatile tool, with no chatter, and a scratch free surface is always produced . The excellent finish that results means there is minimal fret polishing, which saves time, and minimises any further abrasion.
Fine Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
The design of this file makes it ideal for : 1. To dress the ends of the frets, which is to just slightly round off the corner between the rounded fret top and the angled bevel. The small profile and the carefully ground edges of this file means the file can get right into the corners where the fret bevelled end meets the fretboard side. 2. Remove some fret height when an individual fret is found to be too high. 3. As the file can be angled along the side of a fret , it can shape the rounded crown of a fret. (A curved Fret Crowning File is the most efficient method for crowning click here to see our curved Fret Crowning Files)
he file is a fine grit diamond file that has been: 1. Ground around all the edges so the abrasive diamond surface of the file only contacts the fret and nothing else. 2. Tapered from 8mm wide near the handle to 4mm near the end to give best access and visibility of the file contacting the fret. 3. The file handle is angled up at about 20 degrees which means your hand can clear the fretboard easily and not aobstruct your work. As this is a diamond file, it cuts equally well when moving forwards OR backwards which makes it very versatile tool, with no chatter, and a scratch free surface is always produced . The excellent finish that results means there is minimal fret polishing, which saves time, and minimises any further abrasion.
Guitar Tool: Fret Levellers 2010-01-01 Id:249 ChrisAlsopGuitar
Current Price: £19.92
Diamond Fret Dressing File with Beech HandleDiamond Fret Dressing File with Beech Handle
Fret Dressing File. Tapered diamond file with all edges ground. Beech handle which has Angle Raised To About 20 Degrees from Horizontal.
Fine Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
The design of this file makes it ideal for : 1. To dress the ends of the frets, which is to just slightly round off the corner between the rounded fret top and the angled bevel. The small profile and the carefully ground edges of this file means the file can get right into the corners where the fret bevelled end meets the fretboard side. 2. Remove some fret height when an individual fret is found to be too high. 3. As the file can be angled along the side of a fret , it can shape the rounded crown of a fret. (A curved Fret Crowning File is the most efficient method for crowning click here to see our curved Fret Crowning Files)
he file is a fine grit diamond file that has been: 1. Ground around all the edges so the abrasive diamond surface of the file only contacts the fret and nothing else. 2. Tapered from 8mm wide near the handle to 4mm near the end to give best access and visibility of the file contacting the fret. 3. The file handle is angled up at about 20 degrees which means your hand can clear the fretboard easily and not aobstruct your work. As this is a diamond file, it cuts equally well when moving forwards OR backwards which makes it very versatile tool, with no chatter, and a scratch free surface is always produced . The excellent finish that results means there is minimal fret polishing, which saves time, and minimises any further abrasion.
Fine Diamond files - which consist a coating of industrial diamonds embedded in a flat metal surface - give an extremely smooth finish and also have the advantage that they cut equally well in any direction of travel. This allows a back and forth motion to concentrate the abrasion on a particular area and keep the file always in contact with the fret, which helps achieve better accuracy of cut.
The design of this file makes it ideal for : 1. To dress the ends of the frets, which is to just slightly round off the corner between the rounded fret top and the angled bevel. The small profile and the carefully ground edges of this file means the file can get right into the corners where the fret bevelled end meets the fretboard side. 2. Remove some fret height when an individual fret is found to be too high. 3. As the file can be angled along the side of a fret , it can shape the rounded crown of a fret. (A curved Fret Crowning File is the most efficient method for crowning click here to see our curved Fret Crowning Files)
he file is a fine grit diamond file that has been: 1. Ground around all the edges so the abrasive diamond surface of the file only contacts the fret and nothing else. 2. Tapered from 8mm wide near the handle to 4mm near the end to give best access and visibility of the file contacting the fret. 3. The file handle is angled up at about 20 degrees which means your hand can clear the fretboard easily and not aobstruct your work. As this is a diamond file, it cuts equally well when moving forwards OR backwards which makes it very versatile tool, with no chatter, and a scratch free surface is always produced . The excellent finish that results means there is minimal fret polishing, which saves time, and minimises any further abrasion.
Guitar Tool: Fret Levellers 2010-01-01 Id:250 ChrisAlsopGuitar
Current Price: £19.92
Adjustable Diamond Bevel FileAdjustable Diamond Bevel File
The diamond file which is mounted in a holder allows it to be guided along the fretboard with the file cutting an accurate bevel on the fret ends. The file is set to 35 degrees angle.
THe file is adjustable to give a range of protrusion from 0 to 8mm File Depth Protrusion The handle is constructed from very low friction, high grade engineering
The main advantage of using a Bevel File is that a really consistent professional job is achieved where all the fret ends are at the same angle. This main point about bevelling is to make sure there are no sharp edges or uncomfortable fret ends which hamper playing. If a fret end is too long then it disturbs the feel of the neck as the players moves around the fretboard; if the fret end angle is too shallow then the string can easily start to slip off The cutting file is a fine grit diamond file which leaves a good finish and all that is needed is the final light sanding to remove any scratches or uncomfortable edges and finally a polish.
THe file is adjustable to give a range of protrusion from 0 to 8mm File Depth Protrusion The handle is constructed from very low friction, high grade engineering
The main advantage of using a Bevel File is that a really consistent professional job is achieved where all the fret ends are at the same angle. This main point about bevelling is to make sure there are no sharp edges or uncomfortable fret ends which hamper playing. If a fret end is too long then it disturbs the feel of the neck as the players moves around the fretboard; if the fret end angle is too shallow then the string can easily start to slip off The cutting file is a fine grit diamond file which leaves a good finish and all that is needed is the final light sanding to remove any scratches or uncomfortable edges and finally a polish.
Guitar Tool: Fret Bevelling 2010-01-01 Id:245 ChrisAlsopGuitar
Current Price: £32.85
Adjustable Diamond Bevel FileAdjustable Diamond Bevel File
The diamond file which is mounted in a holder allows it to be guided along the fretboard with the file cutting an accurate bevel on the fret ends. The file is set to 35 degree angle.
THe file is adjustable to give a range of protrusion from 0 to 8mm File Depth Protrusion The handle is constructed from very low friction, high grade engineering
The main advantage of using a Bevel File is that a really consistent professional job is achieved where all the fret ends are at the same angle. This main point about bevelling is to make sure there are no sharp edges or uncomfortable fret ends which hamper playing. If a fret end is too long then it disturbs the feel of the neck as the players moves around the fretboard; if the fret end angle is too shallow then the string can easily start to slip off The cutting file is a fine grit diamond file which leaves a good finish and all that is needed is the final light sanding to remove any scratches or uncomfortable edges and finally a polish.
THe file is adjustable to give a range of protrusion from 0 to 8mm File Depth Protrusion The handle is constructed from very low friction, high grade engineering
The main advantage of using a Bevel File is that a really consistent professional job is achieved where all the fret ends are at the same angle. This main point about bevelling is to make sure there are no sharp edges or uncomfortable fret ends which hamper playing. If a fret end is too long then it disturbs the feel of the neck as the players moves around the fretboard; if the fret end angle is too shallow then the string can easily start to slip off The cutting file is a fine grit diamond file which leaves a good finish and all that is needed is the final light sanding to remove any scratches or uncomfortable edges and finally a polish.
Guitar Tool: Fret Bevelling 2010-01-01 Id:246 ChrisAlsopGuitar
Current Price: £32.85
Half Size Diamond Fret Bevel FileHalf Size Diamond Fret Bevel File
The diamond file which is mounted in a holder allows it to be guided along the fretboard with the file cutting an accurate bevel on the fret ends. The file is set to 35 degree angle.
This is a smaller sized bevel file with Bevel Angle of 35 degrees and is aimed at shorter scale length instruments such as ukuleles, banjos and mandolins, or for detailed work on the higher, closer frets on a full size guitar. The handle is constructed from very low friction, high grade engineering
The main advantage of using a Bevel File is that a really consistent professional job is achieved where all the fret ends are at the same angle. This main point about bevelling is to make sure there are no sharp edges or uncomfortable fret ends which hamper playing. If a fret end is too long then it disturbs the feel of the neck as the players moves around the fretboard; if the fret end angle is too shallow then the string can easily start to slip off The cutting file is a fine grit diamond file which leaves a good finish and all that is needed is the final light sanding to remove any scratches or uncomfortable edges and finally a polish.
This is a smaller sized bevel file with Bevel Angle of 35 degrees and is aimed at shorter scale length instruments such as ukuleles, banjos and mandolins, or for detailed work on the higher, closer frets on a full size guitar. The handle is constructed from very low friction, high grade engineering
The main advantage of using a Bevel File is that a really consistent professional job is achieved where all the fret ends are at the same angle. This main point about bevelling is to make sure there are no sharp edges or uncomfortable fret ends which hamper playing. If a fret end is too long then it disturbs the feel of the neck as the players moves around the fretboard; if the fret end angle is too shallow then the string can easily start to slip off The cutting file is a fine grit diamond file which leaves a good finish and all that is needed is the final light sanding to remove any scratches or uncomfortable edges and finally a polish.
Guitar Tool: Fret Bevelling 2010-01-01 Id:247 ChrisAlsopGuitar
Current Price: £24.07
Mini Dual Angle Diamond Bevel FileMini Dual Angle Diamond Bevel File
This is a minature sized fret bevel file with the file length 45mm. The diamond file passes through a slot in an angled block. Where the file exits the block a 90 degree or 35 degree angle is made.
The file fits the slot securely and is held in place with an allen screw to prevent the file moving.
By sliding the file into the block either the 90 of 35 degree angle is obtained and the amount the file protrudes from the block can also be altered.
This tool is ideal for bevelling the odd fret or for doing a few frets following a partial refret. Our larger bevel files are recommended for bigger jobs. Ideally this short file , at only 45mm, is best used to produce the correct angle on a single fret.
Reducing the length of the fret to roughly the correct length is best done using a longer ,coarser, file - and to use this little file to finish the angle correctly and get a nice smooth finish.
Dimensions: • 35 and 90 degrees Angled Bevel File • 45mm File Length • Fine Grit Diamond File Included • Coarse Grit Diamond File Included
By sliding the file into the block either the 90 of 35 degree angle is obtained and the amount the file protrudes from the block can also be altered.
This tool is ideal for bevelling the odd fret or for doing a few frets following a partial refret. Our larger bevel files are recommended for bigger jobs. Ideally this short file , at only 45mm, is best used to produce the correct angle on a single fret.
Reducing the length of the fret to roughly the correct length is best done using a longer ,coarser, file - and to use this little file to finish the angle correctly and get a nice smooth finish.
Dimensions: • 35 and 90 degrees Angled Bevel File • 45mm File Length • Fine Grit Diamond File Included • Coarse Grit Diamond File Included
Guitar Tool: Fret Bevelling 2010-01-01 Id:251 ChrisAlsopGuitar
Current Price: £22.62
